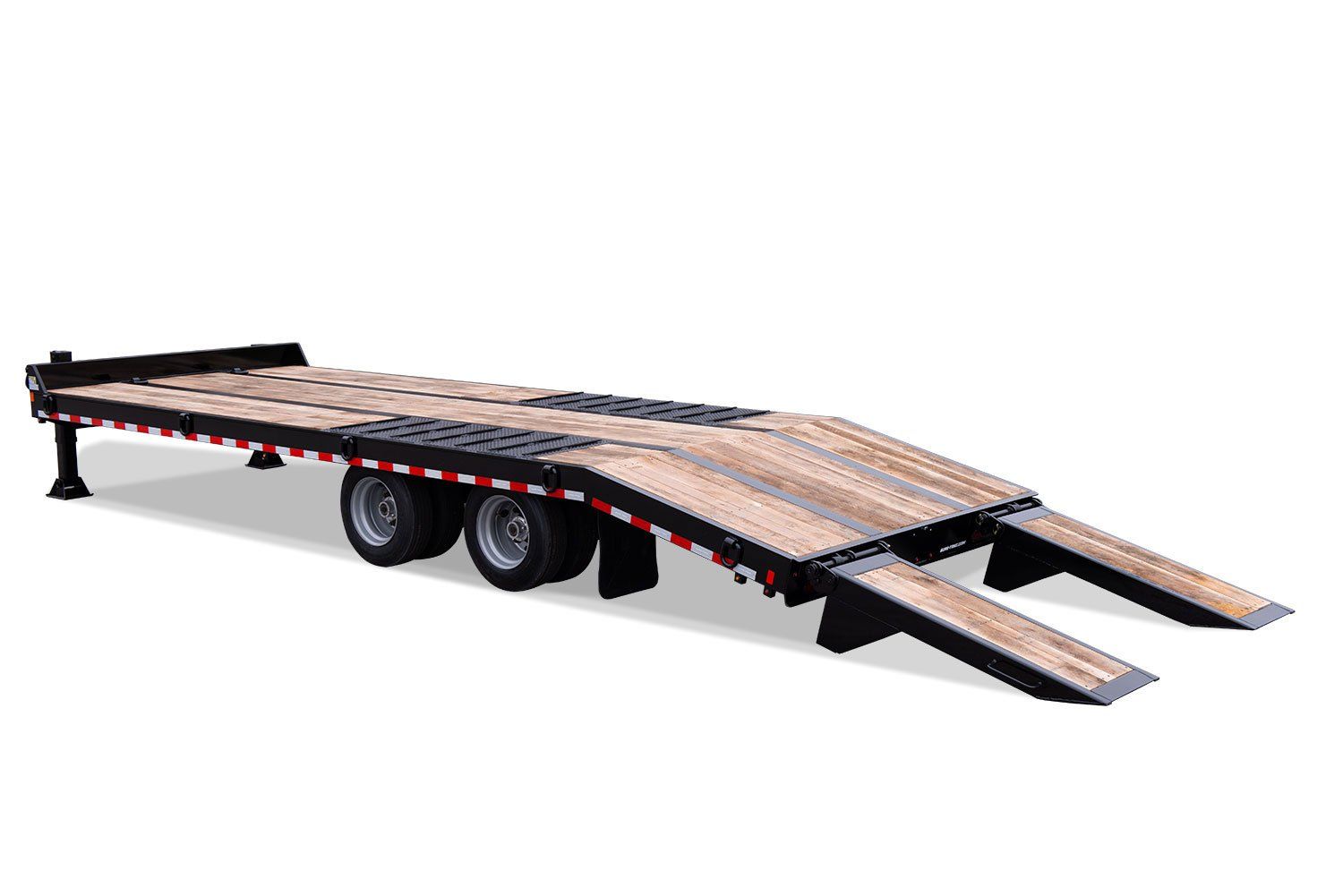

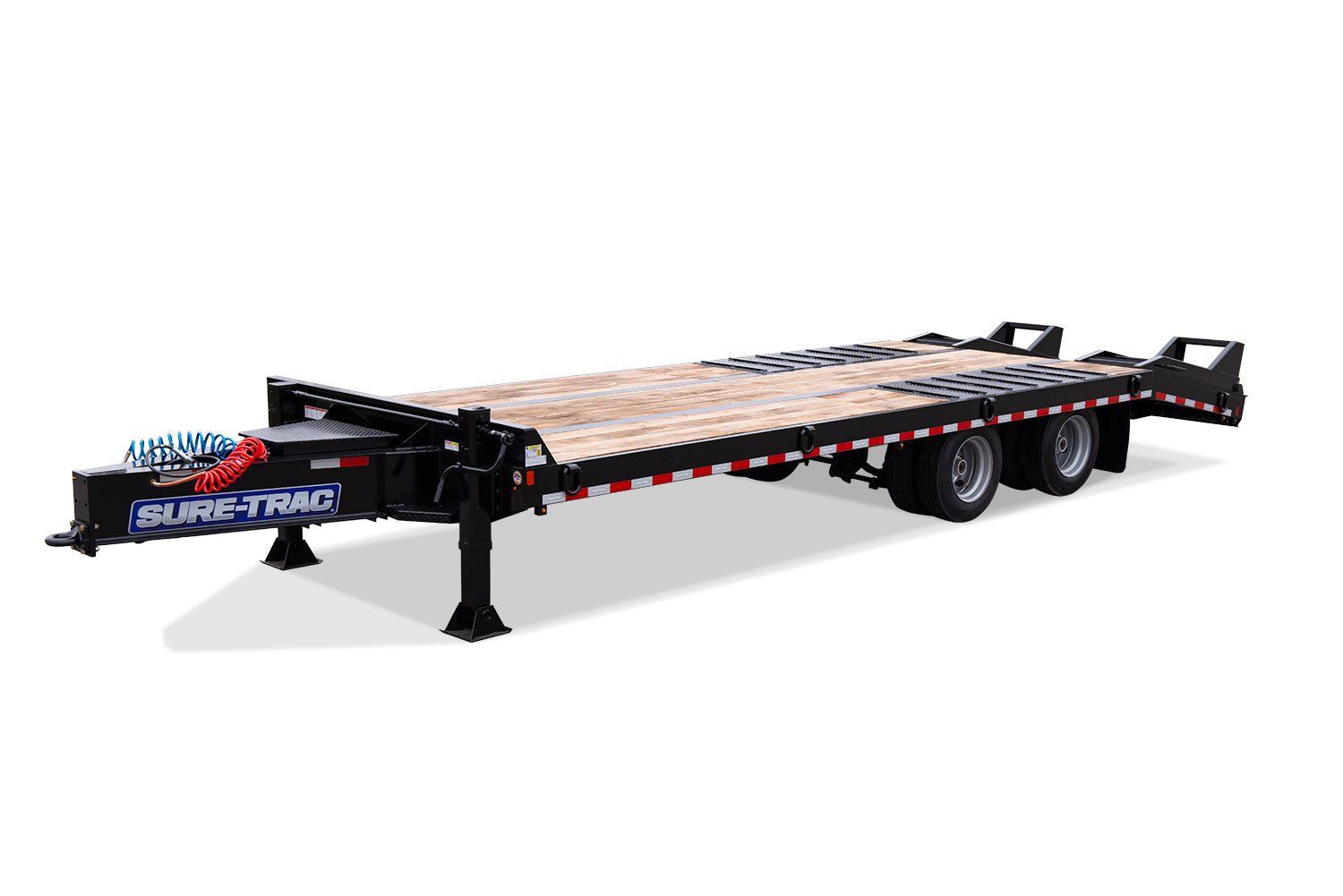

Air Brake Deckover

LOE-AIR-BRAKE-DECKOVER_g1-1920w

Standard Features

Air Brake Deckover

  • Powder Coat Finish
  • Hutch H-9700 Suspension
  • Dual 50K 2-speed Jacks
  • Hi-Tensile steel Construction
  • Full Pierced Beam Construction
  • Steel Plated Tongue
  • HD Fabricated Bulkhead
  • Oil-Bath Axles
  • 215/75R17.5 LRH Tires
  • 2″ Nominal Oak Decking
  • Cleated Wheel covers
  • 5′ Bi-Directional, Fold Flat Spring Assisted Wood-Filled Ramps
  • Everlink™ – High Performance Wiring Harness
  • Sealed LED Lights
  • Lockable Toolbox (In-Tongue)
  • Mud Flaps
  • Spare Tire Carrier

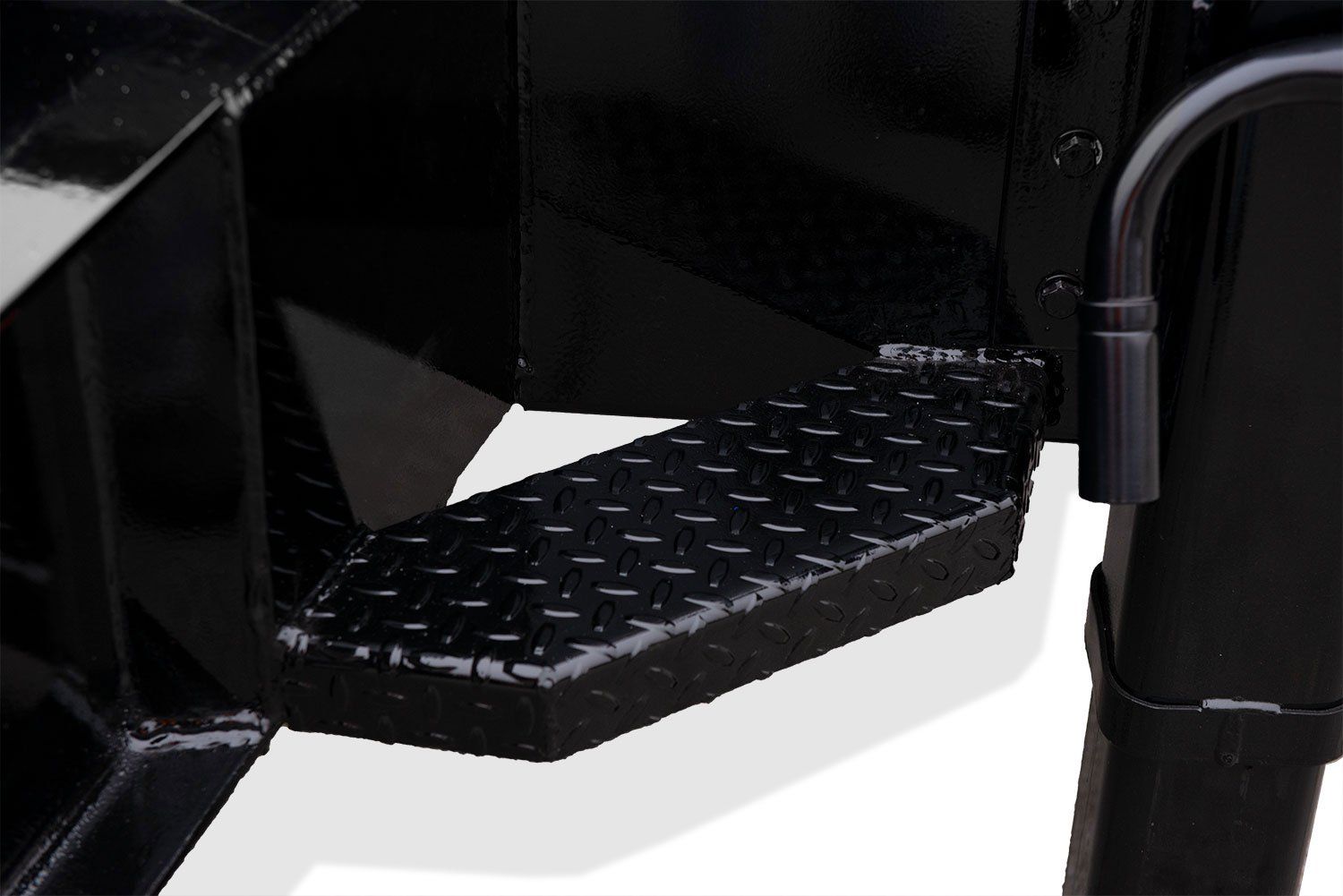

  • Step-On Tongue (Driver’s Side)
  • (12) 1″ HD D-Rings
Specifications 8.5 x 20 + 5 8.5 x 24 + 5
GVWR (lbs) 49000 61000
GAWR (lbs/axle) 20000 20000
Curb Weight 9450 11300
Payload 39550 49700
Main Frame W14 x 22#/ft., I-Beam W14 x 26#/ft., I-Beam
Side Rails 8″ C-Channel Side Rails
Cross Members 6″ Jr-I-Beam (16″ On-Ctr)
Tongue Steel Plated Tongue, 72″ Length
Beaver Tail 13 Degree, 60″ Length
Coupler 66K Pintle Eye
Jacks Dual 50K 2-Speed Jacks (Bolt-On)
Axles Oil-Bath Axles Oil-Bath Axles (Triple Axle)
Suspension Hutch H-9700 Suspension
Tires 215/75R17.5 LRH Tires 215/75R17.5 LRH Tires
Wheels 17.5″, 8 on 6.5, Radial 17.5″, 8 on 6.5, Radial
Decking 2″ Nominal Oak Decking
Lights All LED Lights
Electric Plug 7-Way Cold Temperature Semi-Style Plug
Finish Powder Coat High Gloss Black
Overall Length 378″ 426″
Deck Height 34-1/4″ 34-1/4″
Coupler Height Adjustable 21″ – 29″
