C-Channel Car Hauler

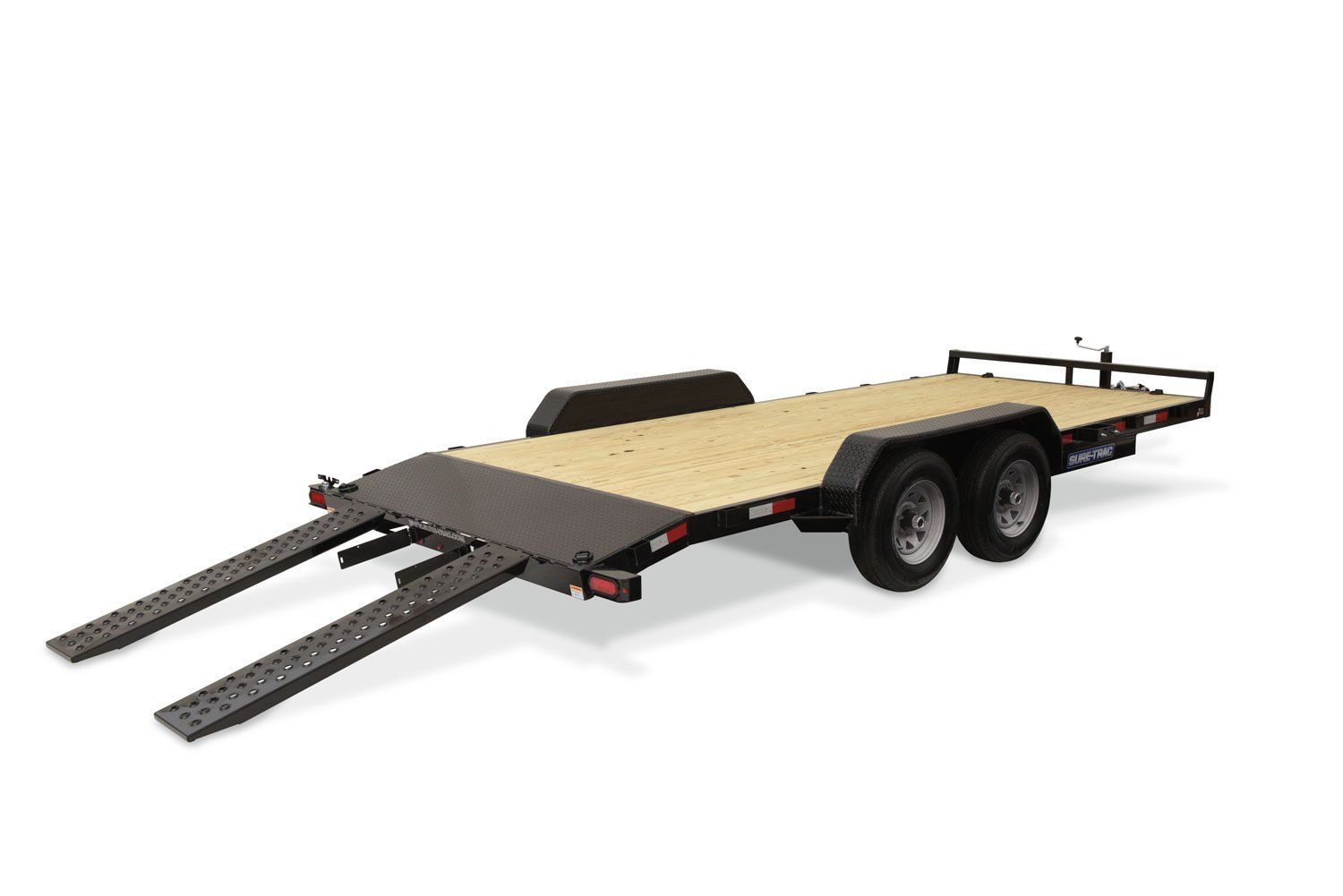

LOE-C-channel-car-hauler-rear-ramps-down-edit-1920w

Standard Features

C-Channel Car Hauler

  • 15″ Radial Tires (205 7SR15 LRC) 3.5k Axle
  • 15″ Radial Tires (225 75R15 LRD) 5k Axle Pressure
  • Treated 2 x 6 Decking
  • C-Channel Full Wrap Tongue
  • Stake Pockets
  • Bead Blasted, Iron Phosphate Washed
  • Sealed Brake Connections
  • Everlink™ – High Performance Wiring Harness
  • (4) 1/2″ D-Rings
  • Spare Tire Carrier
  • HD Tube Bulkhead
  • Easy Lube Hubs
  • Dual Brake Axles
  • Powder Coat Finish
  • Slide-In 5′ Fabricated Ramps
  • 2-5/16″ A-Frame Coupler
  • Setback Jack
  • 7-Way RV Style Electrical Plug
  • Rubber Mounted LED Sealed Lights
  • HD Tread Plate Fenders
  • 82 Inch Between Fenders
  • 2 ft.Tread Plate Beavertail
Model Description GVWR Curb Weight Payload
7′ C-Channel Car Hauler – Tandem 3,500 lb. Axle – 7,000 lbs. GVWR
ST8216CHW-B-070 7 x 16 C-Channel Car Hauler, 7K 7000 1940 5060
ST8218CHW-B-070 7 x 18 C-Channel Car Hauler, 7K 7000 2085 4915
ST8220CHW-B-070 7 x 20 C-Channel Car Hauler, 7K 7000 2200 4800
7′ C-Channel Car Hauler – Tandem 5,200 lb. Axle – 9,990 lbs. GVWR
ST8218CHW-B-100 7 x 18 C-Channel Car Hauler, 1OK 9900 2380 7520
ST8220CHW-B-100 7 x 20 C-Channel Car Hauler, 1OK 9900 2550 7350



2019 SPECIFICATIONS FOR C-CHANNEL CAR HAULER



Specifications 7 x 16 7 x 18 7 x 20 7 x 18 7 x 20
GVWR 7000 7000 7000 9900 9900
GAWR 3500 3500 3500 5000 5000
Curb Weight 1940 2085 2200 2380 2550
Payload 5060 4915 4800 7520 7350
Frame 4″ C-Channel 5″ C-Channel
Cross Members 2″ Square Tube (24″On-Center) 3″ x 2″ Angle (24″ On-Center)
Tongue 4″ C-Channel 5″ C-Channel
Coupler 2-5/16″ Ball
Jack 2K Zinc Plated, Set Back 7K Dropleg, Set Back
Fenders Tread Plate, Double Brake with Backer
Easy Lube Axles Cambered Brake (Both Axles)
Suspension Double Eye Leaf Spring
Tires 205/75R15 LRC 225/75R15 LRD
Wheels 15″, 5 on 4.5 15″, 6 on 5.5
Decking 2 x 6 Pressure Treated Pine
Lights All LED Lights
Electric Plug 7 Pole RV Molded Flat Blade
Finish Powder Coated High Gloss Black
Overall Length 240″ 264″ 288″ 264″ 288″
Deck Length – Flat 168″ 192″ 216″ 192″ 216″
Between Fenders 82″ 82″ 82″ 82″ 82″
Deck Height 21″ 21″ 21″ 23″ 23″
Coupler Height 17″ 17″ 17″ 18″ 18″
