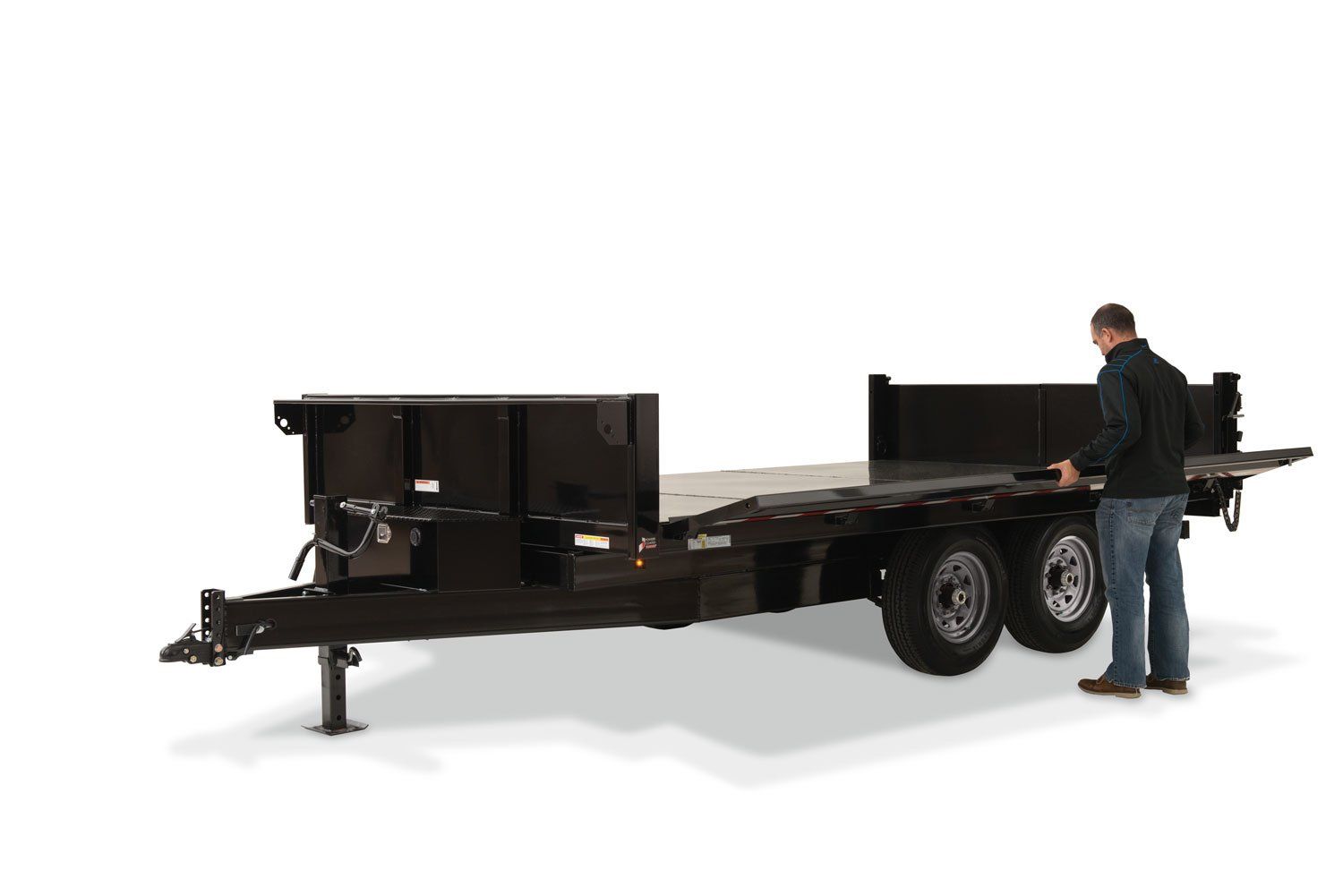

HD Deckover Dump With Fold-Down Sides

HD Deckover Dump With Fold-Down Sides 1

Standard Features

HD Deckover Dump With Fold-Down Sides

  • 16" Radial Tires (235 80R16 LRE) 7K Axle
  • Power Up, Gravity Down Hydraulics
  • All LED Lighting
  • 7-Way RV Style Electrical Plug
  • Everlink™ - High Performance Wiring Harness
  • Deep Cycle Marine Grade Battery
  • Sealed Brake Connections
  • Slipper Spring Axle with Easy Lube Hubs
  • Tongue Mounted HD Control Box with Key Lock
  • Reinforced Combo Barn Door Spreader Gate with Cambar (NEW)
  • Underbody Secure Tool Storage / Spare Tire Tub
  • Integrated Side Body Stiffening System
  • Wider & Heavier HD Ramps (Stored Underneath Bed) (NEW)
  • Iron Phosphate Wash Steel Prep
  • Powder Coat Finish
  • Integrated Tarp Mount
  • HD 12K Dropleg Jack
  • Adjustable Coupler
  • (5) 1/2" D-Rings
  • All-Wheel Brakes
  • 20" Fold-Down Sides
  • 34" Deck Height
  • 10 Gauge Floor
  • Stabilizer Jack Receivers (Jacks Optional)
  • Battery Charger, 110V
Model Description GVWR Curb Weight Payload

8' Deckover Dump w/Fold Down Sides - Tandem 7,000 lb. Axle (Power Up, Gravity Down)
ST9614HLODOD-B-140 96 in. x 14 Deckover 14K Scissor Dump 14000 4140 9860
ST9616HLODOD-B-140 96 in. x 16 Deckover 14K Scissor Dump 14000 4400 9600



2019 Specifications for Heavy Duty Deckover Dump with Fold-Down Sides

96" x 14' 96" x 16'
GVWR (lbs.) 14,000
GAWR (lbs./axle) 7,000 lbs.
Curb Weight 4140 4400
Payload 9,860 9,600
Main Frame 6 x 2 Tube
Cross Members 4" C-Channel
Tongue 8 x 2 Tube
Coupler Adjustable 2 5/16" Ball
Jack HD 12K Dropleg
Axles Easy Lube Cambered Brake
Suspension Slipper Spring
Tires 235/80R16 LRE, Radials
Wheels 16", 8 on 6.5, Radial
Decking 10 ga. Smooth Steel
Lights All LED Lights
Electric Plug 7 Pole RV Molded Flat Blade
Overall Length 222" 246"
Bed Length Inside 168" 192"
Bed Width Inside 96"
Bed Height Inside 20"
Deck Height 34"
Coupler Height Adjustable 19" - 27"
Gate Combination Spreader / Barn Doors
Hydraulic Hoist Scissor Hoist - Power Up, Gravity Down
Pump 3200 PSI 12VDC With Hydraulic Reservoir
Battery Group 24 Deep Cycle
