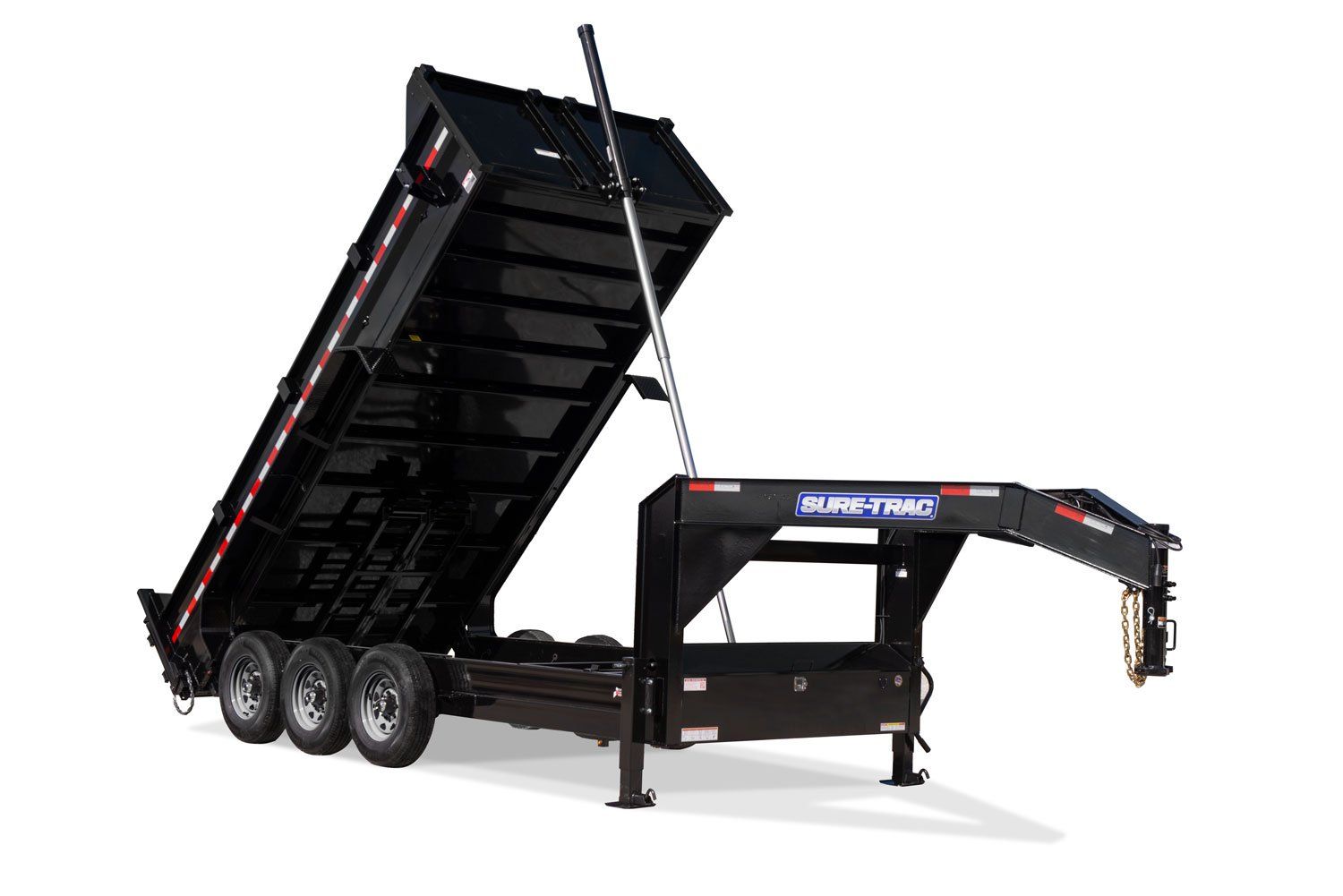

HD Low Profile Tri-Axle Dump

LOE-HD Low Profile Tri-Axle Dump 1

Standard Features

HD Low Profile Tri-Axle Dump

  • 16" Radial Tires (235 80R16 LRE) 7K Axle
  • Power Up, Gravity Down Hydraulics (Telescopic)
  • HD I-Beam Gooseneck
  • Dual 12K Heavy Duty Jacks
  • All LED Lighting
  • 7-Way RV Style Electrical Plug
  • Everlink™ - High Performance Wiring Harness
  • Deep Cycle Marine Grade Battery
  • Sealed Brake Connections
  • Iron Phosphate Wash Steel Prep
  • Powder Coat Finish
  • All-Wheel Brakes
  • Easy Lube Hubs
  • 10 Gauge Floor
  • Stabilizer Jack Receivers (Jacks Optional)
  • HD Slipper Spring Axle
  • Integrated Tarp Mount
  • Underbody Secure Tool Storage
  • HD Control Box with Key Lock
  • Combo Barn Door Spreader Gate with Cambar
  • Welded Tubular Steel Main Frame
  • Spare Tire Carrier
  • (5) 5/8" D-Rings
  • Ramps (Stored Underneath Bed)
  • Side Steps
  • Integrated Side Body Stiffening System
  • Straight Axle
  • Stake Pockets – 4 Per Side
  • Battery Charger, 110V
Model Description GVWR Curb Weight Payload

82" Low Profile Dump Trailer - Telescopic Hoist (Power Up, Gravity Down)
ST8216TLDD-GN-210 82 in. x 16 Lprofile Telescopic Goose Dump, 21K 21000 5440 15560

2019 Specifications For Heavy Duty Tri-Axle Dump

82" x 16
GVWR (lbs.) 21,000
GAWR (lbs./axle) 7000
Curb Weight Telescopic 5440
Payload Telescopic 15560
Frame 8 x 2 Tube
Cross Members 3" Channel
Sides 24"
Gooseneck Coupler Adjustable 2-5/16"
Jack Dual HD 12K Dropleg
Fenders Heavy Duty Tread Plate, Double Brake
Easy Lube Axles Easy Lube Cambered Brake
Suspension Slipper Spring
Tires 235/80R16 LRE
Wheels 16", 8 on 6.5, Radial
Decking 10 ga. Smooth Steel
Lights All LED Lights
Electric Plug 7 Pole RV Molded Flat Blade
Finish Powder Coated High Gloss Black
Overall Length 259"
Bed Length Inside 192"
Bed Width Inside 82"
Bed Height Inside 24"
Deck Height 32"
Coupler Height Adjustable 31" - 39.75"
Gate Combination Barn Door Spreader Gate with Cambar
Hydraulic Hoist Telescopic Power Up, Gravity Down
Pump 3200 PSI 12VDC With Hydraulic Reservoir
Battery Group 24 Deep Cycle
