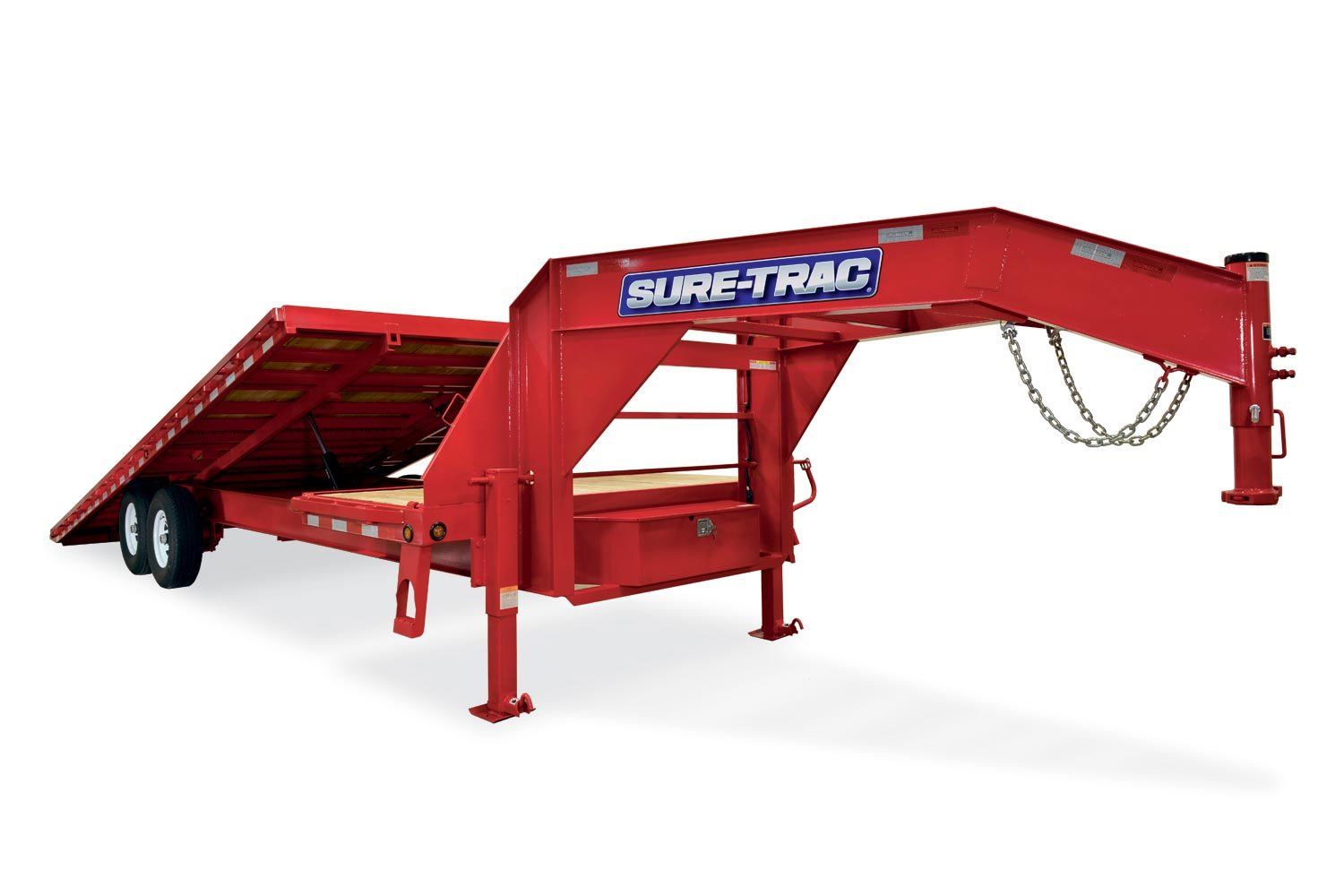

Heavy Duty Low Profile Power Tilt Deckover

LOE-HEAVY-DUTY-LOW-PROFILE-POWER-TILT-DECKOVER_g3-1920w

Standard Features

Heavy Duty Low Profile Power Tilt Deckover

  • 16″ Radial Tires (235 80R16 LRE,) 15K
  • 17.5″ Radial Tires (215 75R17.5 LRH) 17.6K
  • (6) 5/8″ D-Rings
  • Spare Tire Carrier
  • Adjustable Pintle Hitch
  • Everlink™ – High Performance Wiring Harness
  • Dual Hydraulics on 15K and 17.6K Models
  • Treated Decking
  • Battery Charger, 110V
  • HD Bulkhead
  • Sealed LED Lighting
  • Tongue Mounted HD Control Box
  • Deep Cycle Marine Grade Battery
  • HD Stake Pockets and Rub Rail
  • HD 12K Jack
  • Chain Spools
  • Side Step
  • Sealed Brake Connections
  • Powder Coat Finish (NEW)
Model Description GVWR Curb Weight Payload

8.5′ HD Low Profile Tilt Deckover, Tandem 7,000 Ib. Axle – 15,000 Ibs.
ST10222DOT2A-B-150 8.5 x 22 HD Low Pro Power Tilt Deckover, 15K Tandem Axle 15000 4485 10515

8.5′ HD Low Profile Tilt Deckover, Tandem 8,000 Ib. Axle – 17,600 Ibs.
ST10222DOT2A-B-176 8.5 x 22 HD Low Pro Power Tilt Deckover, 17.6K Tandem Axle 17600 5170 12430



Available Options
• Gooseneck • Decking • Spare Tire • Contact your local dealer for more options

Specifications 8.5 x 22 8.5 x 22 + 4 8.5 x 22 8.5 x 22 + 4
GVWR (lbs) 15000 17600
GAWR (lbs/axle) 7000 8000
Curb Weight (Bumper Pull) 4485 5170 4825 5370
Curb Weight (Gooseneck) 4775 5460 5115 5660
Payload (Bumper Pull) 10515 9830 12775 12230
Payload (Gooseneck) 10225 9540 12485 11940
Main Frame W10 x 12#/ft., I-Beam
Side Rails 6 x 2, 3/16 Wall Tube
Cross Members 3″ C-Channel (16″ On-Center)
Coupler (Bumper Pull) Adjustable Pintle Adjustable 4 Bolt Pintle
Coupler (Gooseneck) Adjustable 2-5/16 Ball
Jack (Bumper Pull) HD 12K Dropleg
Jack (Gooseneck) Dual HD 12K Jacks with Toolbox
Axles E-Z Lube Electric Brake
Suspension Slipper Leaf Spring
Tires 235/80R16 LRE 215/75R17.5 LRH LRH
Wheels 16″, 8 on 6.5, Radial 17.5″, 8 on 6.5, Radial
Decking 2″ Pressure Treated Pine
Lights All LED Lights
Electric Plug 7 Pole RV Molded Flat Blade
Finish Powder Coat High Gloss Black
Overall Length (Bumper Pull) 330″ 378″ 330″ 378″
Overall Length (Gooseneck) 378″ 426″ 378″ 426″
Deck Height 34″ 34″ 34″ 34″
Coupler Height (Bumper Pull) Adjustable 21″-29″
Coupler Height (Gooseneck) Adjustable 31″ – 39-3/4″
Hydraulic Hoist Dual Ram (Power Up / Power Down)
Pump 3000 PSI Pump with Reservoir
Battery 24 Group Deep Cycle Battery
Load Angle 15 Degrees
