Implement

LOE-Implement-Second-Large-1-edit-1920w

Standard Features

Implement

  • 15” Radial Tires (225 75R15 LRD) 5K Axle
  • 16″ Radial Tire (235 80R16 LRE) – 7K Axle
  • 17.5″ Radial Tire (215 75R17.5 LRH) – 8K Axle
  • Eye to Eye Spring Axle (10K GVWR)
  • HD Slipper Spring Axle (14K & 16K GVWR)
  • C-Channel Full Wrap Tongue
  • HD Reinforced Diamond Plate Fenders
  • Everlink™ – High Performance Wiring Harness
  • Stake Pockets and Rub Rail
  • 2-5/16″ Coupler & 7K Setback Jack (10K Models)
  • Adj. 2-5/16″ Coupler & 7K Setback Jack (14K Models)
  • Adj. 4-Bolt Pintle Coupler & 12K Jack (16K Models)
  • Extended Tongue
  • Pressure Treated 2 x 6 Decking
  • Bead Blasted, Iron Phosphate Washed

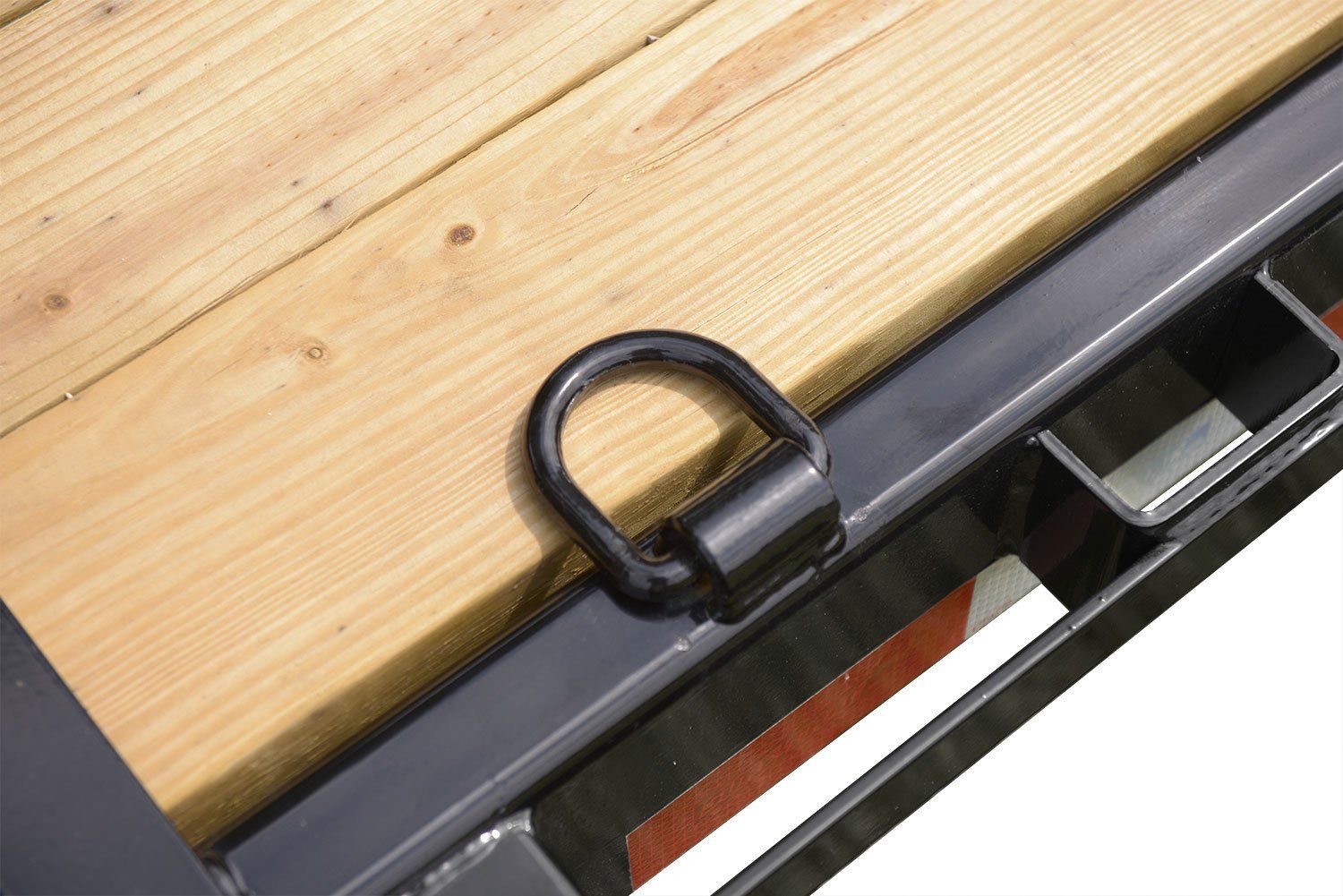

  • (4) 1/2″ D-Rings (10K & 14K Models)
  • (4) 5/8″ D-Rings (16K Models)
  • Easy Lube Hubs
  • Powder Coat Finish
  • HD 4″ Channel Stand Up Ramps (NEW)
  • Spring Assisted Ramps
  • 2 ft. Beavertail
  • Sealed Brake Connections
  • Rear Board Retainers
  • Rubber Mounted LED Sealed Lights
  • Spare Tire Carrier
Model Description GVWR Curb Weight Payload

7′ Implement Trailer – Tandem 5,200 Ib. Axle – 9,900 Ibs.
ST8116ET-B-100 7×16 Implement, 10K 9900 2550 7350
ST8118ET-B-100 7×18 Implement, 10K 9900 2750 7150
ST8120ET-B-100 7×20 Implement, 10K 9900 2950 6950

7 Implement Trailer – Tandem 7,000 Ib. Axle – 14,000 Ibs.
ST8116ET-B-140 7×16 Implement, 14K 14000 2800 11200
ST8118ET-B-140 7×18 Implement, 14K 14000 2870 11130
ST8120ET-B-140 7×20 Implement, 14K 14000 3195 10805

7′ Implement Trailer – Tandem 8,000 Ib. Axle – 16,000 Ibs.
ST8116ET-B-160 7×16 Implement, 16K 16000 3340 12660
ST8118ET-B-160 7×18 Implement, 16K 16000 3520 12480
ST8120ET-B-160 7x 20 Implement, 16K 16000 3700 12300



2019 Specifications for Implement

10K 14K 16K
GVWR 9900 14000 16000
GAWR 5200 7000 8000
Curb Weight 16’ 2550 2800 3340
Curb Weight 18′ 2750 2870 3520
Curb Weight 20′ 2950 3195 3700
Payload 16’ 7350 11200 12660
Payload 18′ 7150 11130 12480
Payload 20′ 6950 10805 12300
Frame 5″ C-ChanneI 6″ C-Channel 6″ C-Channel
Cross Members 3″ C-Channel (24″ On-Center) 3″ C-Channel (16″ On-Center)
Tongue 5″ C-Channel 6″ C-Channel 8″ C-Channel
Coupler 2-5/16″ Ball Adjustable 2-5/16″ Adjustable 4 Bolt Pintle
Jack 7K Dropleg, Set Back HD 12K Dropleg, Set Back
Fenders HD Double BrakeTread Plate
Easy Lube Axles Easy Lube Cambered with Brakes Easy Lube Cambered with 3-3/8″ Brakes
Suspension Eye to Eye Spring Slipper Spring Slipper Spring
Tires 225/75R15 LRD 235/’80R16 LRE 215/75R17.5 LRH
Wheels 15″, 6 on 5.5, Radial 16″, 8 on 6.5, Radial 17.5″, 8 on 6,5, Radial
Decking 2 x 6 Pressure Treated Pine
Lights All LED Lights
Electric Plug 7 Pole RV Molded Flat Blade
Finish Powder Coated High Gloss Black
Overall Length/Flat 16′ 273″/168″
Overall Length/Flat 18′ 297″/192″
Overall Length/Flat 20′ 321″/216″
Drop-Tail Length 26″ 26″ 26″
Bed Width 81″ 81″ 81″
Deck Height 24″ 24″ 24″
Coupler Height 18″ Adjustable 19″ – 27″
Ramps HD 4″ C-Channel
