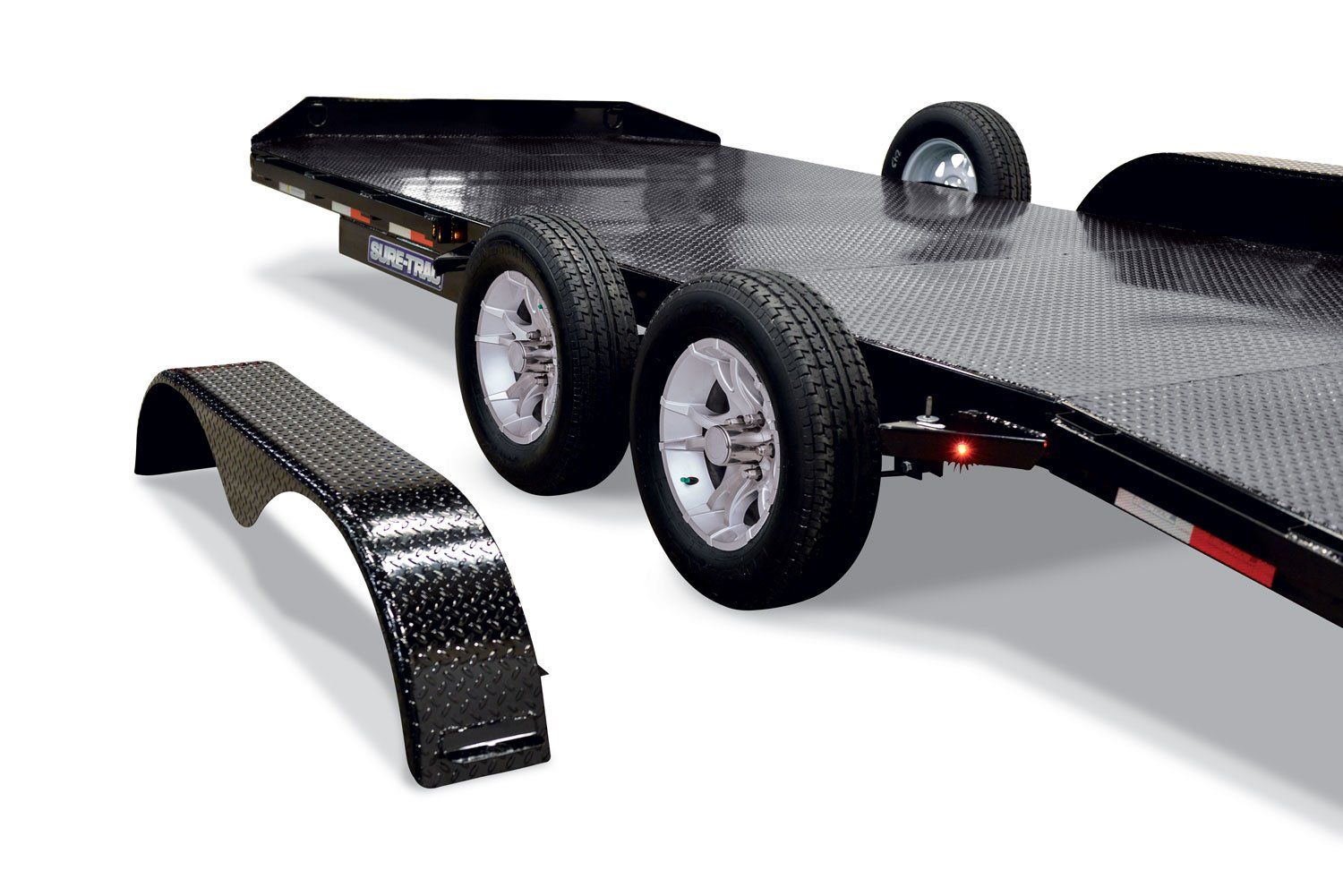

Steel Deck Car Hauler

LOE-sdchg+(3)-1920w

Standard Features

Steel Deck Car Hauler

  • 15″ Radial Tires (205 75R15 LRC) 3.5k Axle
  • 15″ Radial Tires (225 75R15 LRD) 5k Axle
  • Aluminum Wheels (NEW)
  • Tube Main Freme
  • Tubular Full Wrapped Tongue
  • Stake Pockets and Rub Rail
  • Bead Blasted, Iron Phosphate Washed
  • Sealed Brake Connections
  • Everlink™ – High Performance Wiring Harness
  • (4) 1/2″ D-Rings
  • Aerodynamic Heavy-Duty Steel Bulkhead
  • Removable Fender (Driver’s Side}
  • Easy Lube Hubs
  • Powder Coat Finish
  • Slide-ln 5′ Fabricated Ramps
  • 2-5/16″ A-Frame Coupler
  • Setback Jack
  • 7-Way RV Style Electrical Plug
  • Rubber Mounted LED Sealed Lights
  • HD Tear Drop Tread Plate Fenders
  • 82 Inch Between Fenders
  • Spare Tire Carrier
  • 4ft. Beavertail
  • 7 Degree Loading Angle
Model Description GVWR Curb Weight Payload
7′ Steel Deck Car Hauler – Tandem 3,500 lb. Axle – 7,000 lbs. GVWR
ST8218CHS-B-070 7 x 18 Steel Deck Car Hauler, 7K 7000 1940 5060
ST8220CHS-B-070 7 x 20 Steel Deck Car Hauler, 7K 7000 2085 4915
7′ Steel Deck Car Hauler – Tandem 5,200 lb. Axle – 9,990 lbs. GVWR
ST8218CHS-B-100 7 x 18 Steel Deck Car Hauler, 1OK 9900 2240 7660
ST8220CHS-B-100 7 x 20 Steel Deck Car Hauler, 1OK 9900 2320 7580



2019 SPECIFICATIONS FOR STEEL DECK CAR HAULER

Specifications 7 x 18 7 x 20 7 x 18 7 x 20
GVWR (lbs) 7000 7000 9900 9900
GAWR (lbs/axle) 3500 3500 5000 5000
Curb Weight 1940 2085 2240 2320
Payload 5060 4915 7660 7580
Frame 5″ Tube
Cross Members 3″ C-Channel
Tongue 5 x 2 Full Wrap Tube
Coupler 2-5/16″ Ball 2-5/16″ Ball 2-5/16″ Ball 2-5/16″ Ball
Jack 2K Zinc Plated, Set Back 7K Dropleg, Set Back
Fenders Tread Plate, Teardrop with Backer (Removable Drivers Side)
Easy Lube Axles Cambered Brake (Both Axles)
Suspension Double Eye Leaf Spring
Tires 205/75R15 LRC 205/75R15 LRC 225/75R15 LRD 225/75R15 LRD
Wheels 15″, 5 on 4.5, Radial 15″, 5 on 4.5, Radial 15″, 6 on 5.5, Radial 15″, 6 on 5.5, Radial
Decking 12GA Tread Plate
Lights All LED Lights
Electric Plug 7 Pole RV Molded Flat Blade
Finish Powder Coated High Gloss Black
Overall Length 264″ 288″ 264″ 288″
Bed Length Flat 168″ 192″ 168″ 192″
Beavertail Drop Length 48″ 48″ 48″ 48″
Bed Width 82″ 82″ 82″ 82″
Deck Height 21-1/2″ 21-1/2″ 23″ 23″
Coupler Height 17″ 17″ 18″ 18″
Ramps 5′ Fabricated 10 Ga. 5′ Reinforced Fab. 10 Ga.
