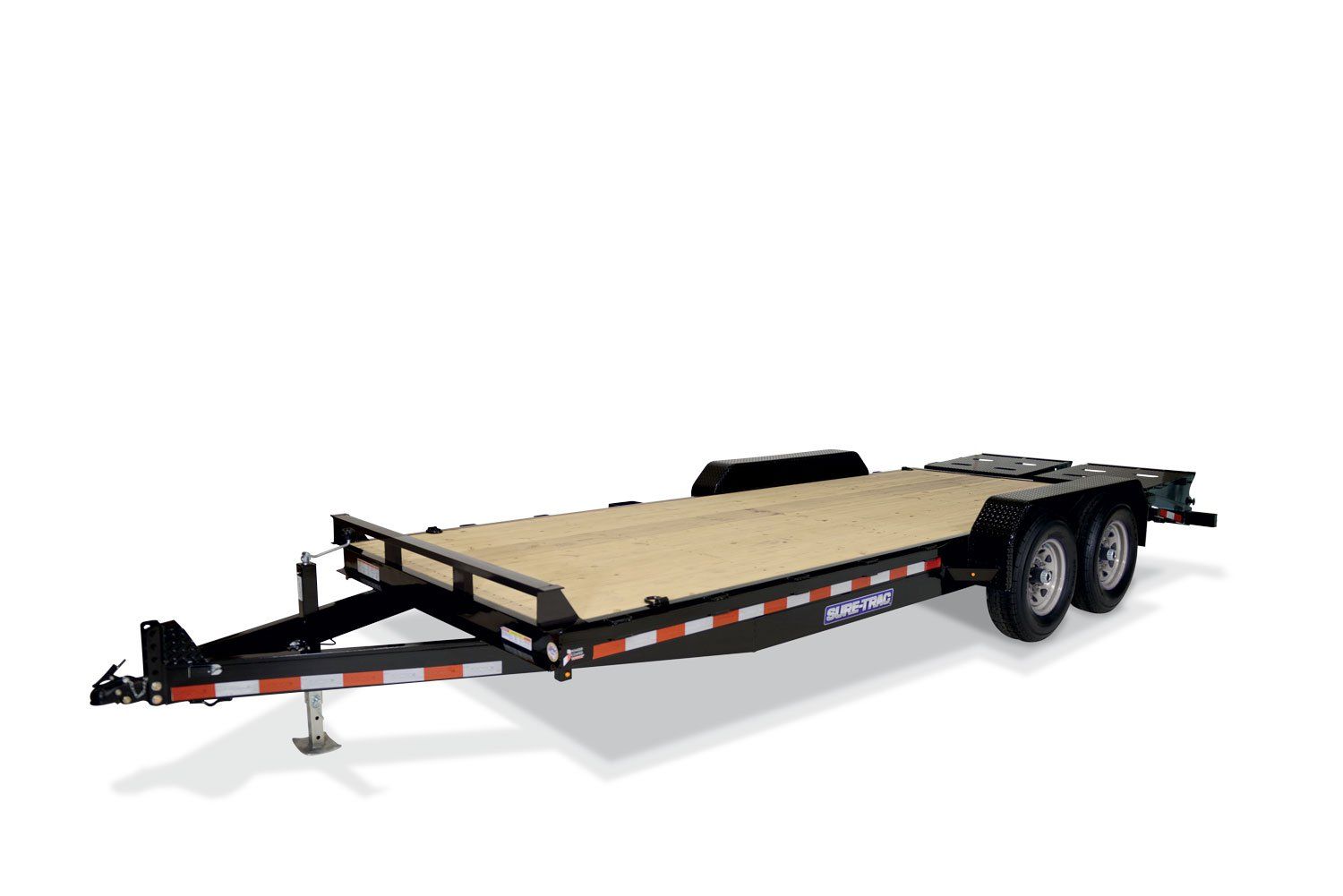

Universal Ramp Implement

LOE-universal-ramp-Implement_front-angle-edit-1920w

Standard Features

Universal Ramp Implement

  • 16″ Radial Tire (235 80R16 LRE) – 7K Axle
  • 17.5″ Radial Tire (215 75R17.5 LRH) – 8K Axle

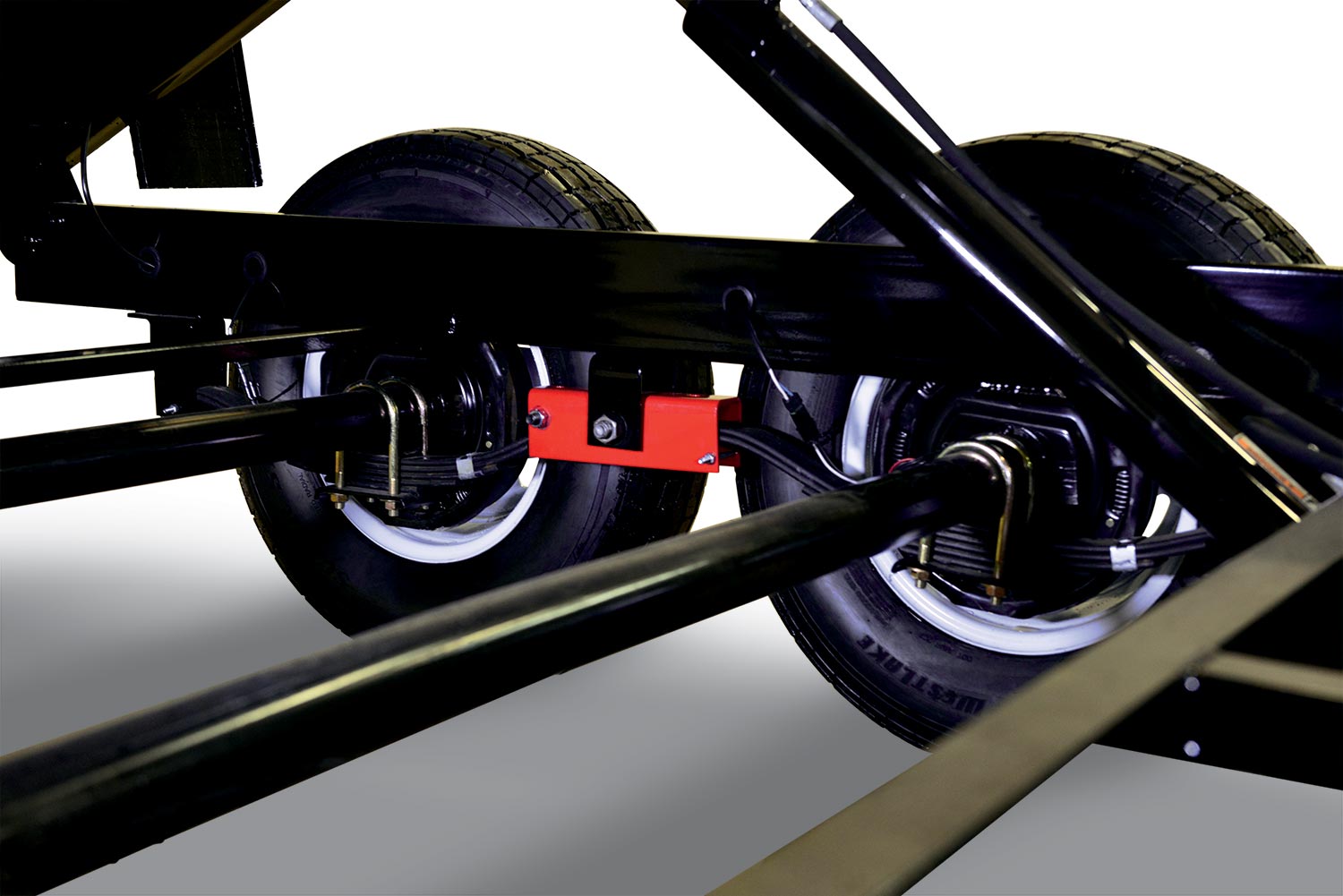

  • HD Slipper Spring Axle
  • C-Channel Full Wrap Tongue
  • HD Reinforced Diamond Plate Fenders
  • Everlink™ – High Performance Wiring Harness

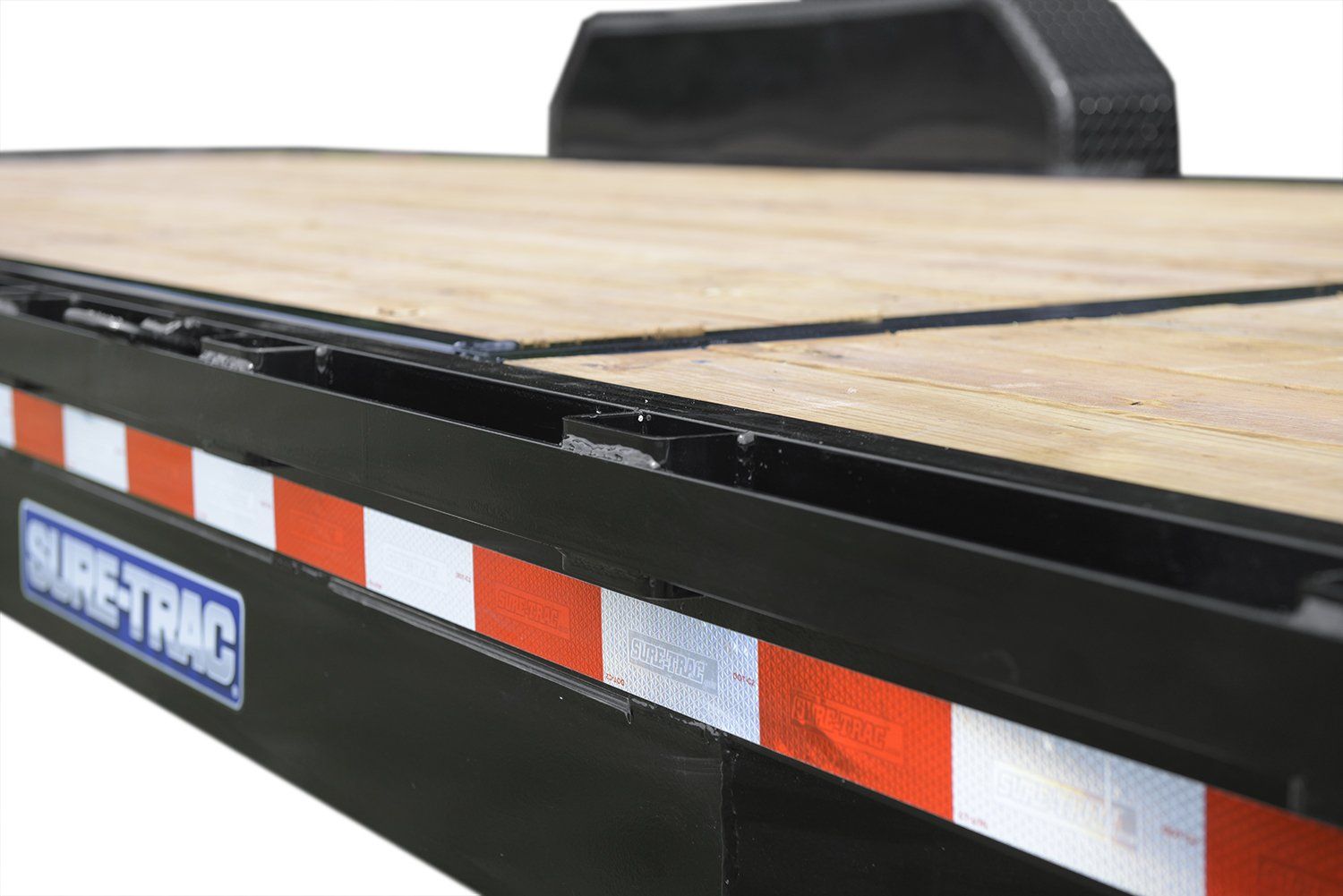

  • Stake Pockets and Rub Rail
  • Bead Blasted, Iron Phosphate Washed
  • Spare Tire Carrier

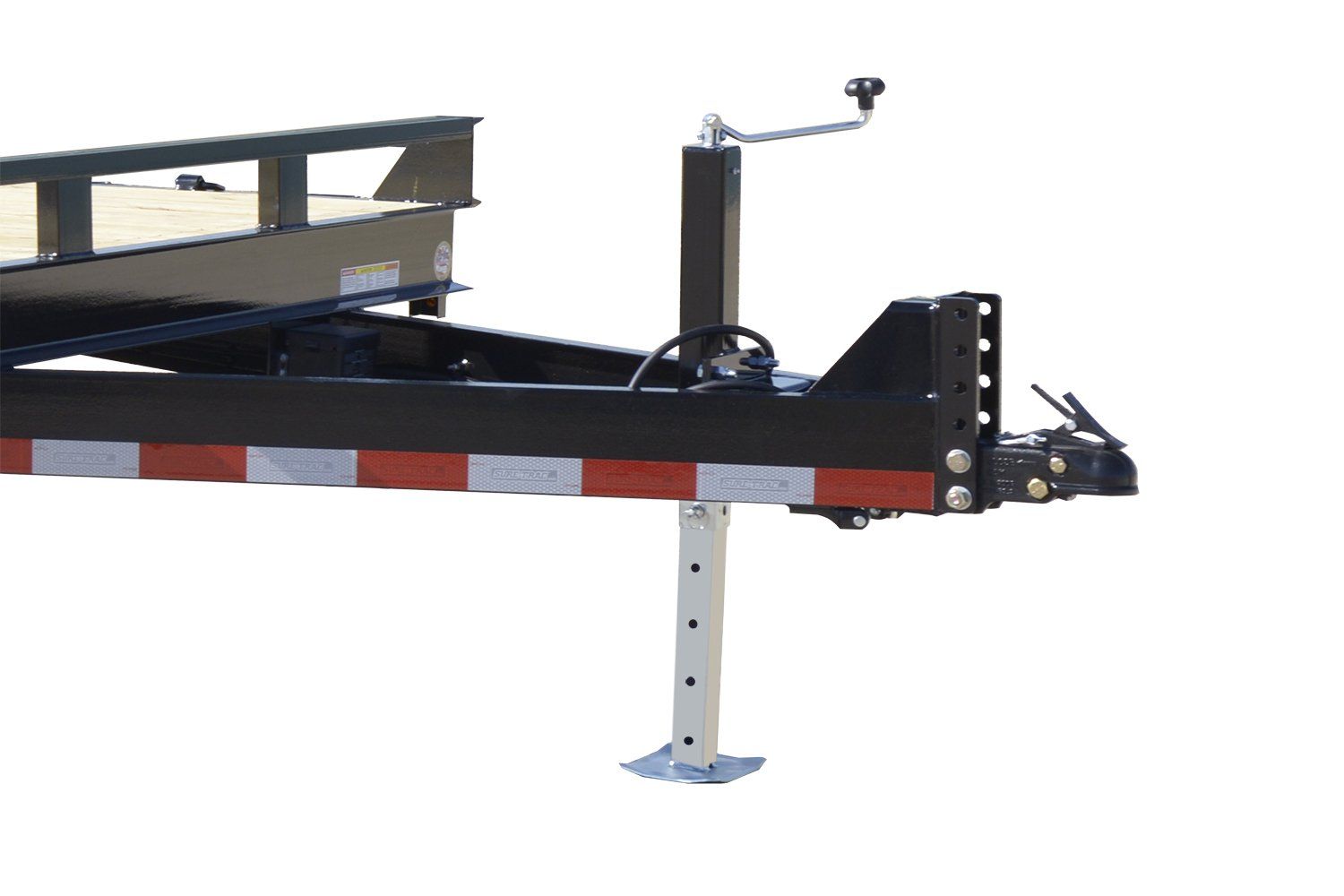

  • Adj. 2-5/16″ Coupler & 7K Setback Jack (14K Models)
  • Adj. 4-Bolt Pintle & HD 12K Jack (16K Models)
  • Extended Tongue
  • Pressure Treated 2 x 6 Decking
  • (4) 1/2″ D-Rings (14K Models)
  • (4) 5/8″ D-Rings (16K Models)
  • Easy Lube Hubs
  • Powder Coat Finish
  • Sealed Brake Connections
  • Rear Board Retainers
  • Rubber Mounted LED Sealed Lights

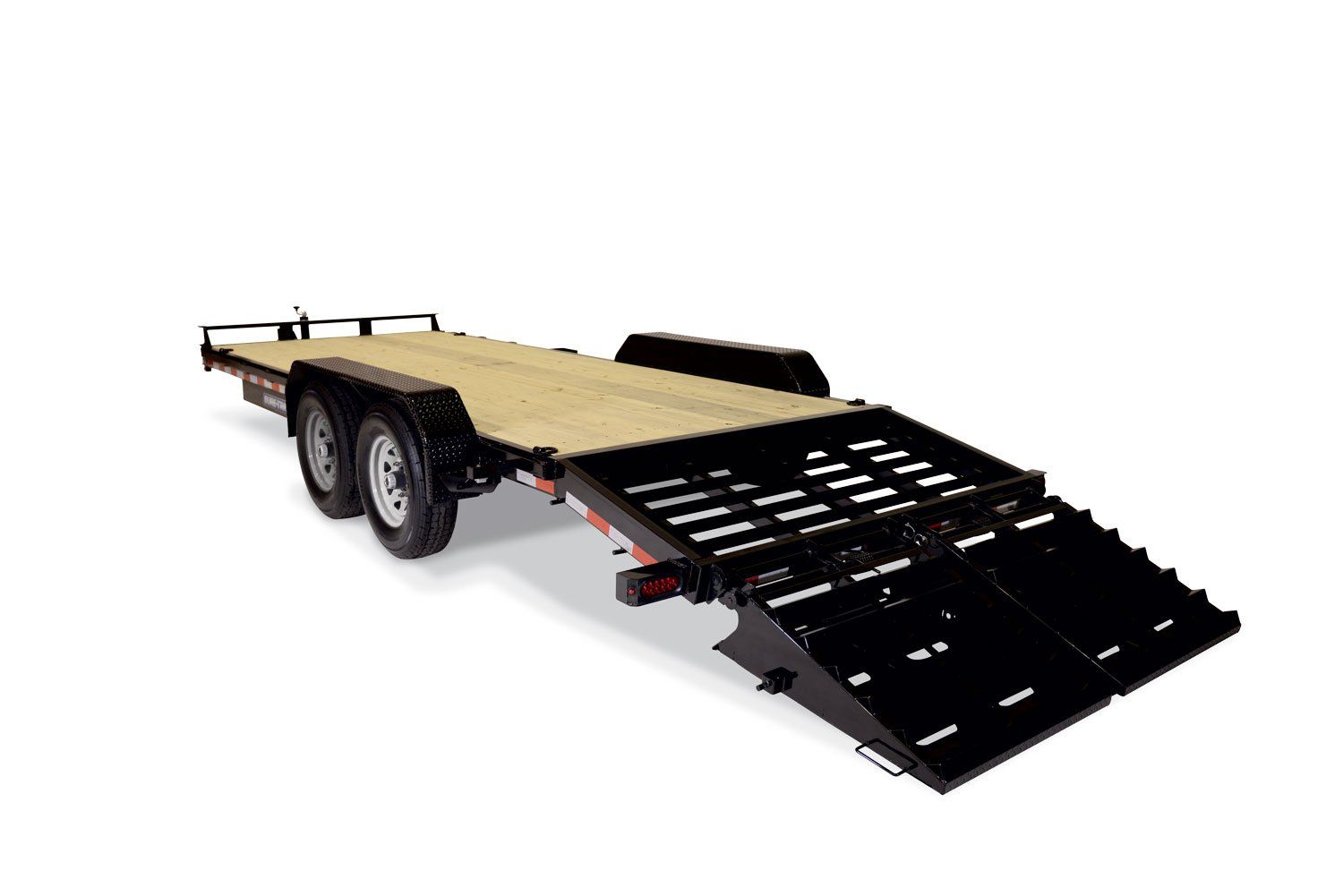

  • 3 ft. Universal Full Width Ramps
  • Spring Assisted Ramps
  • 3 ft. Cleated Beavertail
Model Description GVWR Curb Weight Payload

7’ Universal Ramp Implement Trailer – Tandem 7,000 Ib. Axle – 14,000 lbs. GVWR
ST81153URET-B-140 7 x 15+3 Universal Ramp Implement Trailer, 14K 14000 2970 11030
ST81173URET-B-140 7 x 17+3 Universal Ramp Implement Trailer, 14K 14000 3030 10970

7’ Universal Ramp Implement Trailer – Tandem 8,000 Ib. Axle – 16,000 lbs. GVWR
ST81153URET-B-160 7 x 15+3 Universal Ramp Implement Trailer, 16K 16000 3475 12525
ST81173URET-B-160 7 x 17+3 Universal Ramp Implement Trailer, 16K 16000 3535 12465



2019 Specifications for Universal Ramp Implement

14K 16K
GVWR 14000 16000
GAWR 7000 8000
Curb Weight 15′ + 3′ 2970 3475
Curb Weight 17′ + 3′ 3030 3535
Payload 15′ + 3′
11030

12525
Payload 17′ + 3
10970

12465
Frame 6″ C-Channel
Cross Members 3″ C-Chennel (16″ On-Center)
Tongue 6″ C-Channel 8″ C-Channel
Coupler Adjustable 2-5/16 Adjustable 4-Bolt Pintle
Jack 7K Dropleg, Set Back HD 12K Dropleg, Set Back
Fenders HD Tread Plate HD Tread Plate
Easy Lube Axles Easy Lube Cambered with Brakes Easy Lube Cambered with 3-3/8″ Brakes
Suspension Slipper Spring Slipper Spring
Tires 235/80R16 LRE 215/75R17.5 LRH
Wheels 16″, 8 on 6.5, Radial 17.5″, 8 on 6.5, Radial
Decking 2 x 6 Treated Pine 2 x 6 Treated Pine
Lights All LED Lights All LED Lights
Electric Plug 7 Pole RV Molded Flat Blade 7 Pole RV Molded Flat Blade
Finish Powder Coated High Gloss Black Powder Coated High Gloss Black
Overall Length / Flat 15′ + 3′ 297″/180″ 297″/180″
Overall Length / Flat 17′ +3′ 321”/204 321”/204
Bed Width 81″ 81″
Deck Height 24″ 24″
Coupler Height Adjustable 19″ – 27″ Adjustable 19” – 27″
Ramps Universal Full Width Ramps Universal Full Width Ramps
